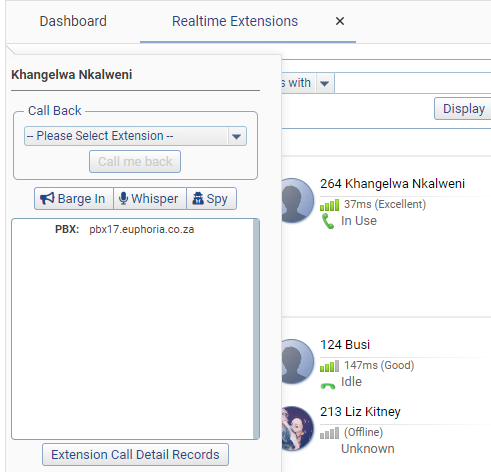

The realtime extensions page shows the current status of extensions as well as their current latency. A latency measure of more than 200ms can indicate a poor connection, and call quality may suffer.
If an extension is online, a tooltip will be available when the extension is selected, showing an option to creat a call back, the server to which the extension is registered, buttons for Whisper, Spy, Barge and a link to the Call Detail Records for that extension.
The call back button allows for a call back to be created between colleagues.
When the user selects the Extension Call Detail Records a new page will open. This page displays calls made to and from the specified extension. You can filter the search result using the option provided.
